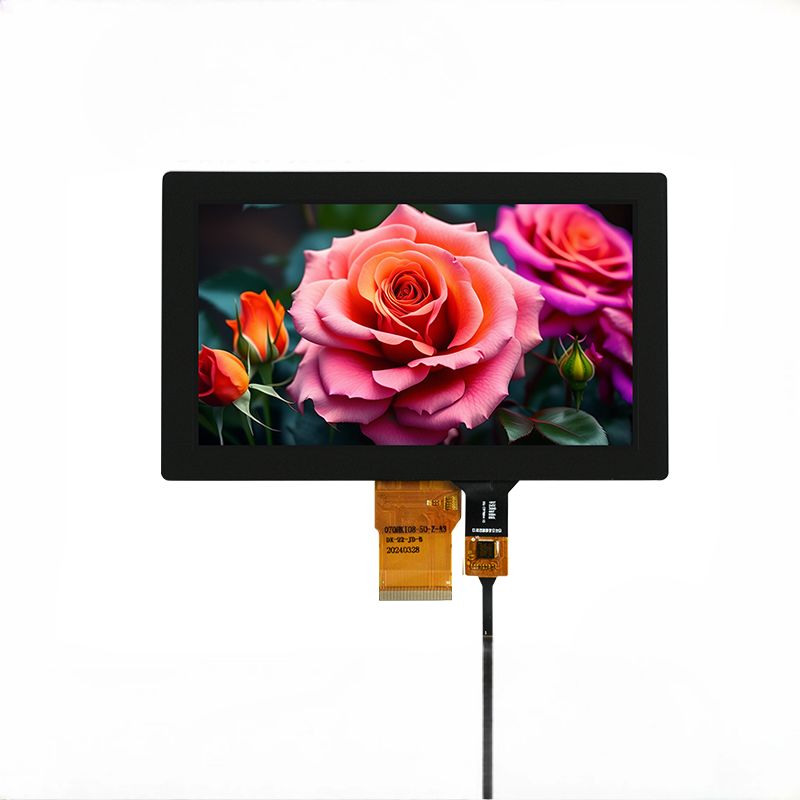

Name: OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brand: HongKong Guanke Industrial Limited
SKU: FS-TFT
Price: 3.10 USD
Availability: InStock

Casa. > prodotti > modulo dell'affissione a cristalli liquidi del tft >

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Luogo di origine:

Dongguan, Cina

Marca:

Fangsheng

Certificazione:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Numero di modello:

FS-TFT

Contattaci

Chiedi un preventivo

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Dettagli del prodotto

Nome prodotto:

OEM ODM Modulo LCD TFT da 7 pollici con touchscreen con interfaccia LVDS 1000 Nits Display LCD TFT d

Luminosità:

1000 pidocchi

Interfaccia:

SPI/RGB/MIPI/LVDS, ecc.

Caratteristiche:

Ampia gamma di temperature, alta luminosità, anti-interferenza, resistenza agli urti, durevole

Costume:

PFC, CTP, vetro di copertura, ecc.

Applicazione:

Pannelli di controllo per l'automazione industriale, display per macchine CNC, ecc.

Risoluzione:

800x480 (Personalizzato)

Evidenziare:

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Termini di pagamento e spedizione

Quantità di ordine minimo

500

Prezzo

$0.1-$8

Imballaggi particolari

Sacchetto di bolle + Blister + Scatola di schiuma + Cartone

Tempi di consegna

3 ~ 5 giorni lavorativi

Termini di pagamento

L/C, T/T, D/A, D/P, Western Union, Paypal

Capacità di alimentazione

200 mila set al mese

Prodotti correlati

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Contattaci ora

Descrizione del prodotto

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Product Specifications

Attribute	Value
Product Name	OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brightness	1000 nits
Interface	SPI/RGB/MIPI/LVDS, etc.
Features	Wide temperature range, high brightness, anti-interference, shock resistance, durable
Custom	PFC, CTP, Cover glass, etc.
Application	Factory automation control panels, CNC machine displays, etc.
Resolution	800x480 (Custom)

Key Features

High brightness up to 800/1000/1500 nits for sunlight readability
Wide operating temperature from -30°C to +85°C for extreme environments
Ultra-low power consumption for energy-saving performance
High contrast ratio for vivid and sharp images
Fast response time (<20ms) for smooth video playback
High pixel density for crisp text and detailed graphics

Technical Parameters

Parameter	Specification
Resolution	800 × 480 pixels
Interface	LVDS
Driver IC	RM533CO + RM577C1
Viewing Angle	Free Viewing Angle (Free V.A)
Touch Support	Capacitive Touch Panel (CTP)
Operating Temp.	-30°C to +85°C (Wide Temperature Range)
Brightness	1000 nits (High Brightness)
Dimensions	165.40 × 104.59 × 7.73 mm
Active Area	152.40 × 91.44 mm
Key Features	Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT
